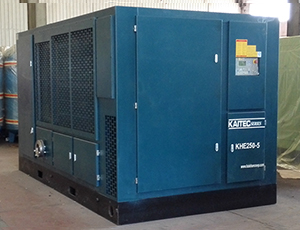

- KAITEC KHE Screw Air Compressor
- KAITEC KHE two-stage rotary screw air compressor
- KAITEC 0.15Mpa-0.2Mpa Low Pressure Screw Air Compressor
- KAITEC 0.3Mpa Low Pressure Screw Air Compressor
- Kaitec 0.5Mpa Low Pressure Screw Air Compressor
- KAITEC KHE High Pressure Screw Air Compressor
- KAISHAN VJ Variable Frequency Screw Compressor
- Portable Air Compressor
- KAISHAN BKCY diesel Screw Compressor
- Kaishan KSCY diesel mobile Air Compressor
- KAISHAN LGCY Diesel Portable Screw Air Compressor
- KAISHAN LG Electrical Portable Screw Air Compressor
- KAISHAN LG High Pressure Diesel portable Screw Air Compressor
- KAISHAN ML Explosion-proof Screw Air Compressor
- KAISHAN LGJY Mining Screw Air Compressor
- KAISHAN LGN Screw Air Compressor
- KAISHAN LGYT Mining Screw Air Compressor
- Piston Air Compressor
- KAISHAN KA Medium Pressure Industrial Air Compressor
- KAISHAN KB High Pressure Industrial Air Compressor
- KAISHAN KJ Low Pressure Industrial Piston Air Compressor
- KAISHAN KS Low Pressure Industrial Piston Air Compressor
- KAISHAN Mining industry Piston Air Compressor
- Kaitec Screw Vacuum Pump
- High-speed Single-stage Centrifugal Blower
- Industrial Refrigeration Heat Pump Applied Screw Compressor
- Centrifugal Air Compressor
- Centrifugal Steam Compressor
- Centrifugal Refrigerating Compressor
- Gas Air Compressor
- ORC Screw Expansion Power Station
YT23D(7655D) Air Leg Rock Drill
Home » Products » Drill Rigs and Rock Drills » Rock Drills » Air-leg Rock Drill » YT23D(7655D) Air Leg Rock Drill
YT23D(7655D) air leg rock drill is a new and efficient rock drilling machine. It is suitable for drilling horizontal, tilting and vertical blast holes in medium-hard rock (f=8~18) with the general diameter of 34~42mm and its effective economic drilling depth can reach 5m. It can be both used together with our FT160 air leg and installed on a drilling rig or rack.
Technical Parameters of YT23D(7655D) Air Leg Rock Drill
Model |
YT23D/7655D |
|
Weight |
24 |
kg |
Length |
668 |
mm |
Cylinder diameter |
70 |
mm |
Stroke |
70 |
mm |
Tracheal diameter |
25 |
mm |
Pipe diameter |
13 |
mm |
Stalk borer |
22×108 |
mm |
Aperture |
φ30-φ42 |
mm |
Working pressure |
0.35-0.63 |
Mpa |
Air consumption |
≤38 |
L/Sec |
Impact energy |
45 |
J |
Impact frequency |
28 |
HZ |
Maximum hole depth |
5 |
m |
Size |
735×305×218 |
mm |
