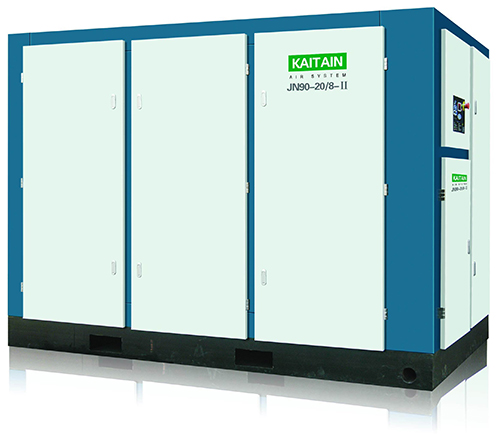

KAITAIN JN Two-stage Compression Screw Air Compressor

Home » Products » Air Compressor » KAITAIN JN Two-stage Compression Screw Air Compressor

Get Operation Manual

Power range: 90-400kW

The two-stage compression screw air compressors of Kaishan reach the key points of Level-1 energy efficiency:

1. Two-stage compression is closer to the most power-saving isothermal compression than single-stage compression. In principle, two-stage compression saves 5-8% more energy than single-level compression.

Adopting two-stage compression main engine means adopting two sets of SKY screw rotors of different sizes to achieve reasonable pressure distribution and reduce the compression ratio of each compression. Low compression ratio also has two special advantages: 1) reducing internal leakage, and promoting volume efficiency; 2) considerably reducing the load of bearings, promoting the service life of bearings and extending the service life of main engine.

2. World-leading efficiency of rotor molded lines

The most crucial is the efficiency of rotor molded lines, "T" patent molded line developed by Dr. Tang Yan, selected into Recruitment Program of Global Experts, with world-leading efficiency, 5-15% higher than other molded lines.

3. High-level configuration and system optimization

The key points also lie in the local design and details of products, and high-end system configuration and optimization, again 5-8% higher than the efficiency of other brand products.

Highly-efficient main engine and intrinsic air inlet conditioning design, cooling flow-field design, oil-gas separation technology, highly-efficient motor, intelligent automatic control and other innovative technology of JN series, will bring tangible energy-efficient benefit to customers.

Technical parameters of JN series two-stage compression screw air compressors

Model	Working pressure (MPa)	Capacity (m³/min)	Motor power (kW)	Outlet size	Weight (kg)	Noise dB(A)	Dimensions (mm)
JN75-18/6- II	0.6	18	75	DN65	3400	72	2860×1780×2020
JN75-18/7- II	0.7	18
JN75-16/8- II	0.8	16
JN90-23/6- II	0.6	23	90	DN65	3500	72	2860×1780×2020
JN90-21/7- II	0.7	21
JN90-20/8- II	0.8	19.5
JN90-17/10- II	1.0	16.5
JN 90-15/13- II	1.3	15
JN110-26/6- II	0.6	26	110	DN65	4350	73	2860×1890×2060
JN110-26/7- II	0.7	26
JN 110-24/8- II	0.8	24.0
JN 110-19.5/10- II	1.0	19.5
JN 110-18/13- II	1.3	18.0
JN132-34/6- II	0.6	34.0	132	DN80	5100	73	3200×1930×2260
JN132-32/7- II	0.7	32.0		DN80	5100	73	3200×1930×2260
JN 132-28/8- II	0.8	28.0		DN65	4450	75	2860×1890×2060
JN 132-24/10- II	1.0	24.0
JN 132-21/13- II	1.3	21.0
JN160-41/6- II	0.6	41.0	160	DN80	6000	75	3660×2060×2280
JN 160-38/7- II	0.7	38.0
JN 160-33/8- II	0.8	33.0
JN 160-31/10- II	1.0	31.0
JN 160-27/13- II	1.3	27.0
JN185-44/6- II	0.6	44.0	185	DN100	6300	76	3660×2060×2280
JN 185-42/7- II	0.7	42.0		DN80	6100	78	3660×2060×2280
JN 185-38/8- II	0.8	38.0
JN 185-34/10- II	1.0	34.0
JN 185-31/13- II	1.3	31.0
JN200-48/6- II	0.6	48.0	200	DN100	6350	78	3660×2060×2280
JN 200-46/7- II	0.7	46.0	200	DN100	6350	78	3660×2060×2280
JN 200-41/8- II	0.8	41.0	200	DN80	6200	78	3660×2060×2280
JN 200-40/10- II	1.0	40.0
JN 200-33/13- II	1.3	33.0
JN220-55/6- II	0.6	55.0	220	DN100	8800	78	4160×2260×2350
JN220-53/7- II	0.7	53.0
JN 220-47/8- II	0.8	47.0
JN 220-43/10- II	1.0	43.0
JN 220-38/13- II	1.3	37.8
JN250-60/6- II	0.6	60.0	250	DN125	9300	80	4300×2360×2350
JN250-57/7- II	0.7	57.0		DN125	9300	80	4300×2360×2350
JN 250-54/8- II	0.8	54.0		DN100	9100	80	4160×2260×2350
JN 250-47/10- II	1.0	47.00
JN 250-43/13- II	1.3	43.00
JN280-67/6- II	0.6	67	280	DN125	8500	80	3530×2280×2270
JN280-63/7- II	0.7	63
JN 280-60/8- II	0.8	59.8
JN 280-54/10- II	1.0	53.7
JN 280-46/13- II	1.3	46.00
JN 315-70/8- II	0.8	70.0	315	DN125	8600	81	3530×2280×2270
JN 315-62/10- II	1.0	62.0
JN 315-56/13- II	1.3	56.0
JN355-70/10- II	1.0	69.2	355	DN125	8900	81	3870×2280×2270
JN355-62/13- II	1.3	62	355	DN125	8900	81	3870×2280×2270
