KAISHAN LGCY Diesel Portable Screw Air Compressor

Home » Products » Air Compressor » KAISHAN LGCY Diesel Portable Screw Air Compressor

Get Operation Manual

KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize optimal energy saving effect.

Design Characteristics of Screw Rotor Profile:

1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.

Technical Parameters of KAISHAN LGCY Diesel Portable Screw Air Compressor

Model	Capacity (m³/min)	Working pressure (Mpa)	Diesel engine (kw)	Dimensions (mm)
*LGCY-6/7	6	0.7	YCD4B22-95	3750×1920×1700
*LGCY-7.5/7	7.5	0.7	YC4D80-K20	3900×1920×1700
*LGCY-9/7	9	0.7	YC4D95Z-K20	3900×1920×1700
*LGCY-10/7	10	0.7	YC4D95Z-K20	3900×1920×1700

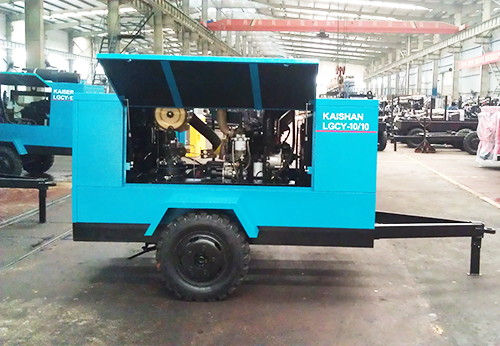

*LGCY-10/10	10	1	4BTA3.9-C125	3900×1920×1900
*LGCY-8.5/14	8.5	1.4	4BTA3.9-C125	3900×1920×1900
*LGCY-12/7	12	0.7	4BTA3.9-C125	3900×1980×1900
*LGCY-12/7A	12	0.7	YC4A125Z-T21	4000×1980×1900
*LGCY-9/14	9	1.4	YC6B150Z-K20	4080×1980×2350
*LGCY-10/13	10	1.3	YC6B150Z-K20	4080×1980×2350
*LGCY-12/10	12	1	YC6B150Z-K20	4080×1980×2350
*LGCY-12/10Q	12	1	QC6108ZG	4080×1980×2350

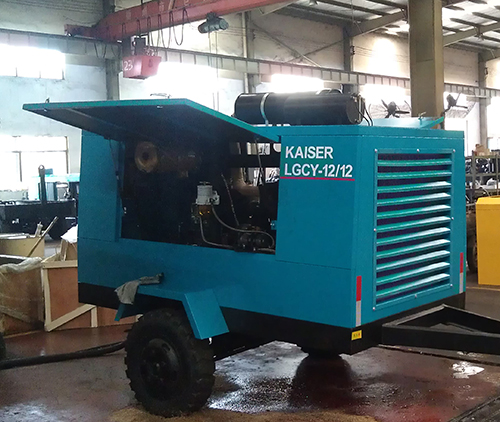

*LGCY-12/12	12	1.2	EQ6BT5.9-C160	4080×1980×2350
*LGCY-12/13	12	1.3	6BTA5.9-C180	4080×1980×2350
LGCY-13/13	13	1.3	6BTA5.9-C180	3450×1520×2220
LGCY-13/13A	13	1.3	YC6A180Z-T21	3450×1520×2220
LGCY-15/13	15	1.3	WD415.23	3380×1650×2500
LGCY-15/13A	15	1.3	YC6A240-20	3380×1650×2500
LGCY-17/7	17	0.7	6BTA5.9-C180	3380×1640×2350
LGCY-13/17	13	1.7	6CTA8.3-C215	3780×1980×2350
LGCY-16/13	16	1.3	6CTA8.3-C215	3980×1800×2450
LGCY-17/14.5	17	1.45	6CTA8.3-C260	3980×1800×2450

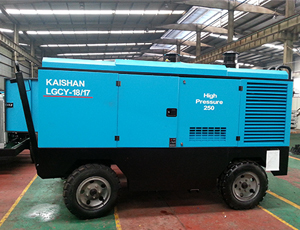

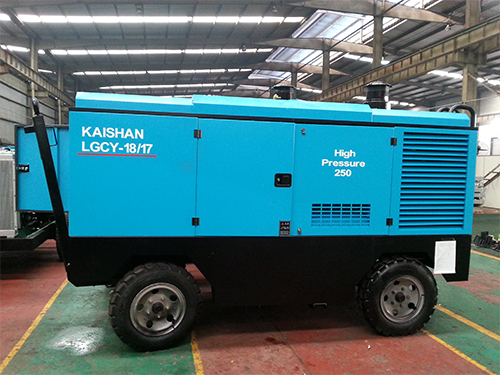

LGCY-18/17	18	1.7	6CTA8.3-C260	3980×1800×2450
LGCY-22/8	22	0.8	6CTA8.3-C260	4580×1950×2600
LGCY-22/14	22	1.4	YC6M340L-K20	4580×1950×2600
LGCY-22/14K	22	1.4	6LTAA8.9-C325	4580×1950×2600
LGCY-27/10	27	1	YC6M340L-K20	4600×1950×2850
LGCY-32/10	32	1	YC6M395L-K20	4600×1950×2850
KSCY-14/12(Ultra-quiet)	14	1.2	6BTA5.9-C180	3980×1800×2100
LGCY-19.5/19	19.5	1.9	6CTA8.3-C260	3980×1800×2650
LGCY-19.5/19A	19.5	1.9	YC6M260L-K20	3980×1800×2650
LGCY-22/20(Cummins)	22	2	6LTAA8.9-C325	4600×1950×2850
LGCY-22/20(Yuchai)	22	2	YC6M340L-K20	4600×1950×2850
LGCY-26/20(Cummins)	26	2	6LTAA8.9-C360	4600×1950×2850
LGCY-27/20(Yuchai)	27	2	YC6M395L-K20	4600×1950×2850
LGCY-27/22(Heavy Kang)	27	2.2	NTA855-P400	4600×1950×2850
LGCY-30/17(Yuchai)	30	1.7	YC6M395L-K20	4600×1950×2850
LGCY-33/25(Cummins)	33	2.5	QSZ13-C550	4700×2100×2850
LGCY-33/25(Yuchai)	33	2.5	YC6K550L	4700×2100×2850
